Unit 20: Electric Current & Resistance
Practice Problems
Note: problem difficulty is ranked using a star system.
(*) One-star problems are fundamental to the unit, and can be done relatively quickly. Use these problems to introduce yourself to the material.
(**) Two-star problems are more difficult, and require an understanding of one or two key concepts. Use these problems to test your understanding of the material.
(***) Three-star problems are the most difficult, and require some creative thinking in addition to a deep familiarity with multiple key concepts. Use these problems to challenge yourself; if you can complete one of these, you’re on your way to mastering the material.
*Q20.1) What current flows across a cell membrane if 5000 potassium ions cross the membrane every 10ms?
*Q20.2) Find the two missing currents in the diagram below.

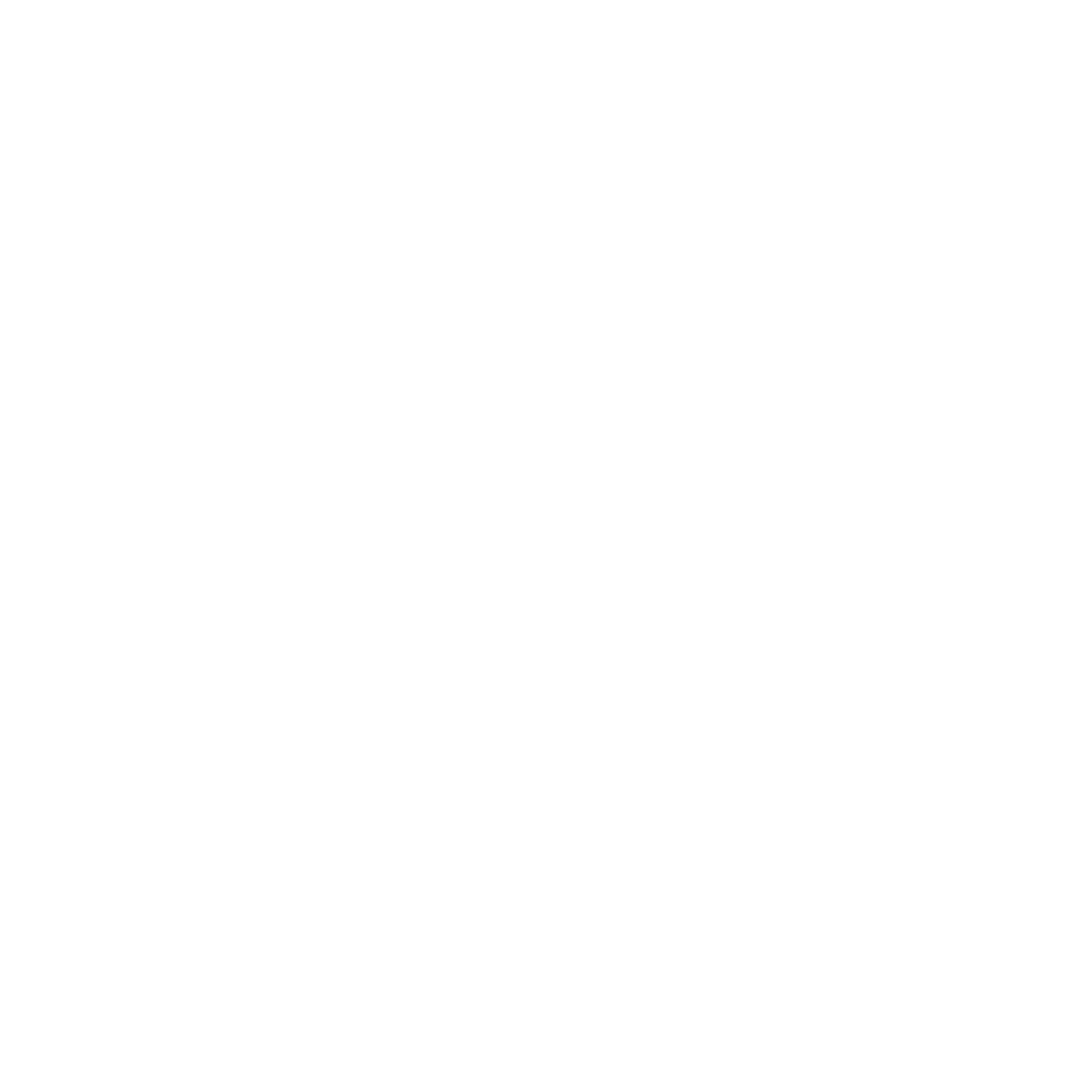

*Q20.4) Find the equivalent resistance of the set of resistors shown below.

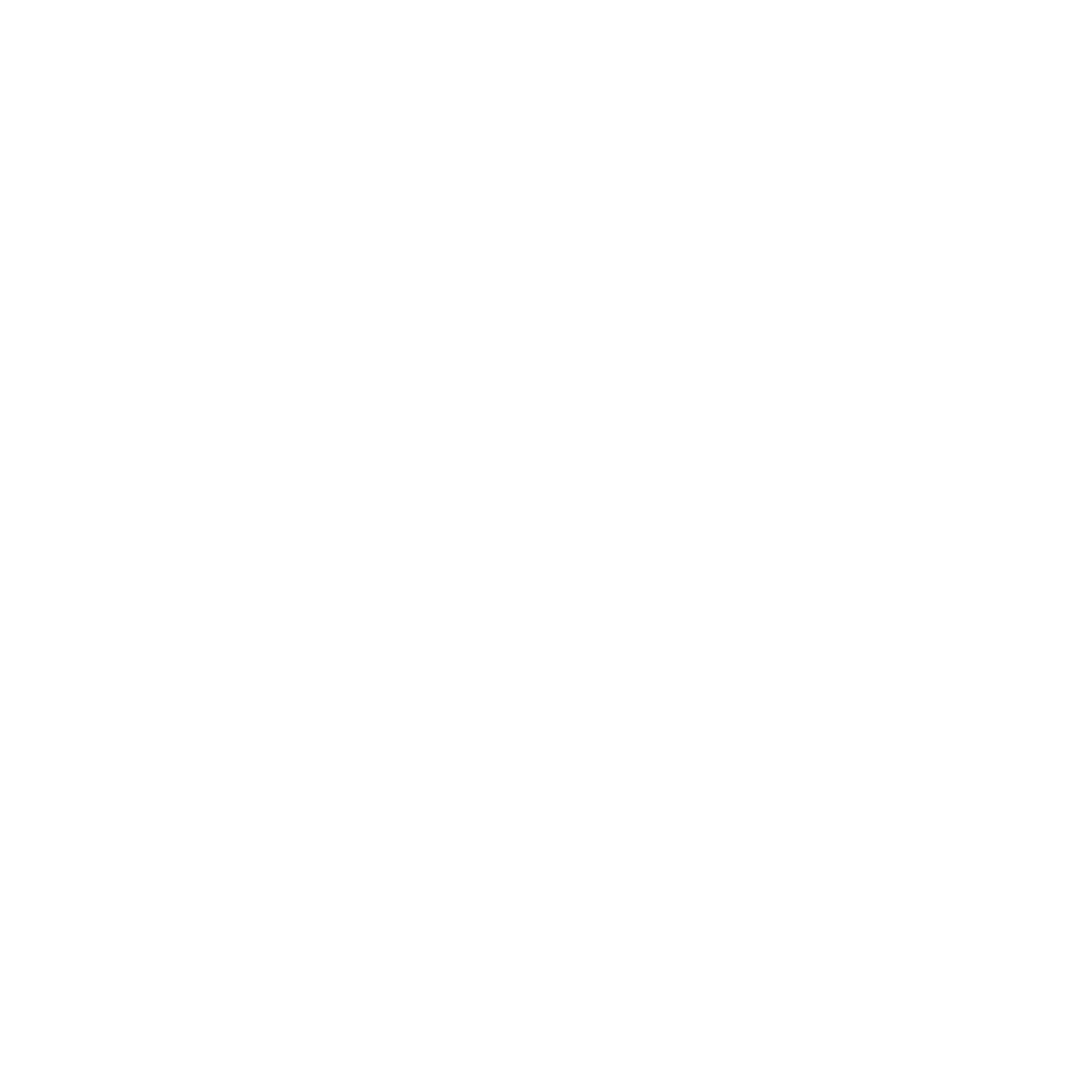

*Q20.3) Find the equivalent resistance of the set of resistors shown below.
**Q20.5) Find the equivalent resistance of the set of resistors shown below.
***Q20.6) Find the equivalent resistance of the set of resistors shown below.
